Description

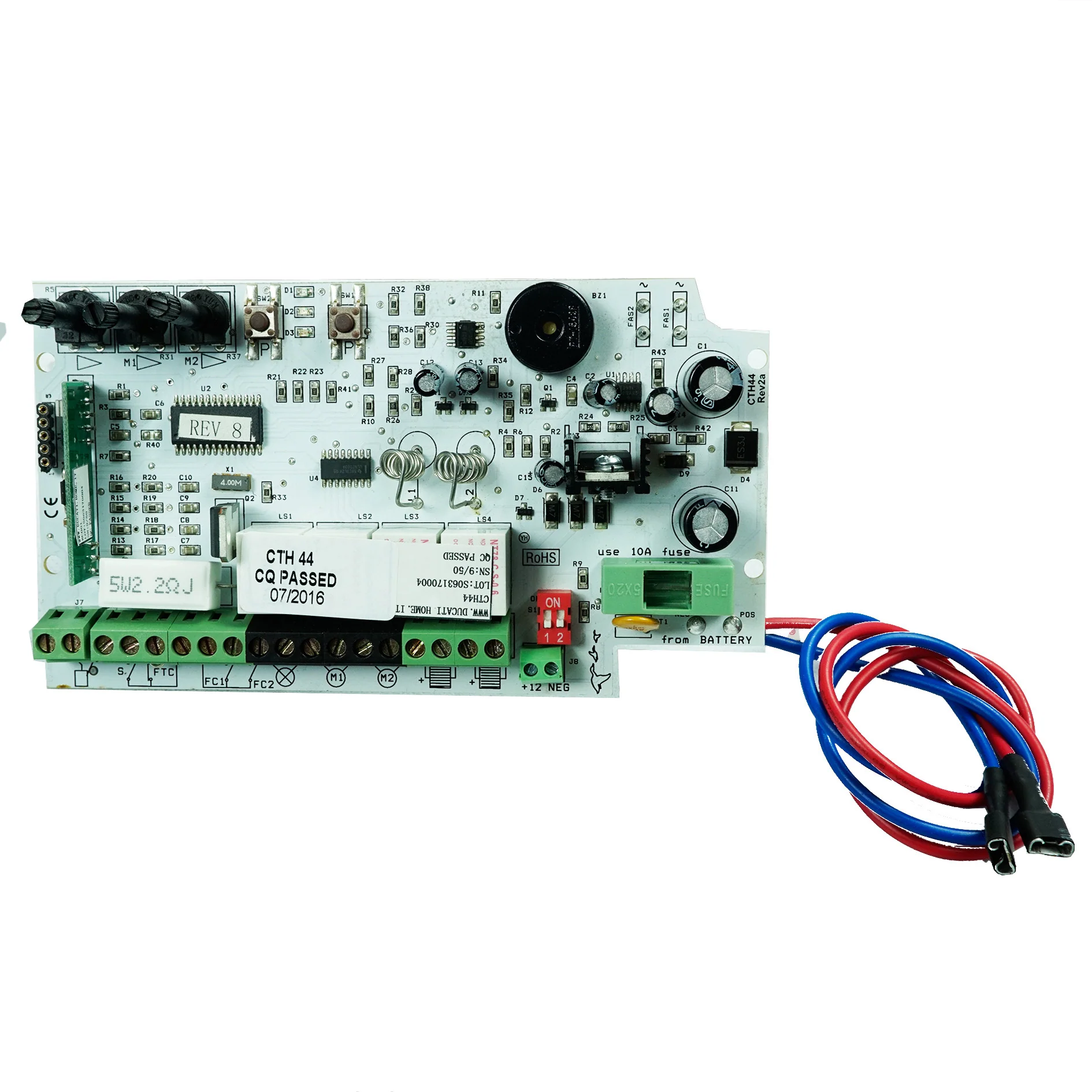

Electronic board for DUCATI's Solar powered 12V garage door opener 8990

Ensures 100% autonomous use even where AC power is unavailable.
Highly reliable as featured with Ducati's low consumption technology FULLSOL: with only 7mA stand-by consumption ensures long lasting performances in all weather condition. Up to 50 cycles daily guaranteed. No additional modules requires: it's all included: on board solar panel & battery recharge management!
featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family
comes with DUCATI's rolling coded radio transmission ( on board radio receiver & antenna cable).

Compatibility

MOTOR COMPATIBILITY:

compatible with 8990 (12V) garage door opener only

ACCESSORIES COMPATIBILITY:

DUCATI's rolling coded remote controls,
keyswitch NO ( normally open contact)
12V low consumption photocells model 7120
12V bulb blinker
external additional radio receiver RIXY6040R or RIXY 6043

Features

Low consumption technology: only 7mA stand-by consumption! Protect the environment, reduces waste of energy, save money.
Ensure long lasting autonomous use ad reliability. Up to 50 daily cycles guaranteed even in worst winter weather.
Integrated solar panel & battery management: the card is a just ready to operate autonomously powered by solar panel. No need to add any extra module
standard battery use: when you'll need to replace the battery ( about each 2-3 years of use) you can find it anywhere a we do not use customized expensive batteries
Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step mode (push to open & push to close).
Easy self-storing of the remotes controls by pushing one button
Adjustable motor power
Solar panel alignment help system (LED and acoustic guide to find the ideal position of the solar panel)
Photocells alignment help system (LED and acoustic guide to find the ideal position of the solar panel)
Battery charge status indicator ( LED)
Made in Italy - All components are manufactured in the company to warranty high quality and reliability. After sale service and assistance provided directly by manufacturer without intermediaries
CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid

Technical Data

CTH44 G ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Power supply	12V
protection fuse	√10AF
use on garage door opener 8990	√
output services	12V
stand-by power consumption	7mA
radio receiver	1 channel
remote controls channels storage capacity	10 codes
radio transmission protocol	DUCATI rolling code
radio frequency	433,92MHz
remote control automatic learning	√
On board antenna	√
external antenna input	√
automatic closure working mode	√ with adjustable pause time up to 100 sec.
step by step working	√ one pulse to open; one pulse to close
motor power adjustment	√ by potentiometer
Obstacle detection safety system (DUCO SAFE)	obstacle detection
In compliance with EU-CE norms	√
flashing light output	√ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
safety beam-photocells input (NC contact)	√ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120

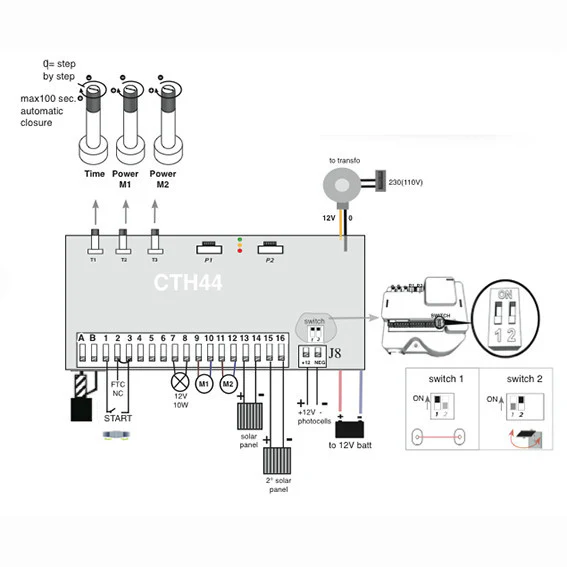

Manual

INSTALLATION VIDEO

CTH44 to view installation manual

FOR GARAGE OPENERS

CTH44 G

CTH29S

992012

R133

FC202

992013

992014
