Description

Ideal for double wing gate up to 2 x 2,5m/8ft wing length each leaf

24V Underground swing gate opener provide an invisible powerful and safe solution, ideal for ornamental swing gates.

To be installed below grade in a waterproof casing.

Ideal for residential & commercial use

Ensures 100% autonomous use even where AC power is unavailable. Discrete and aestetic purity are obtained with this invisible operator, entirely fitted underground

SOFT STOP

The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
This prevent from usury and ensure long life to your opener and door.
This function prevents the door banging closing

ASR (Autimatic Reversal System)

Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.

DUCO SAFE

obstacle detection safety system guarantees maximal safety of use to your family

SELF LOCK TECHNOLOGY

The self-locking properties of the spindle increase the protection against a dangerous and unauthorised “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted.

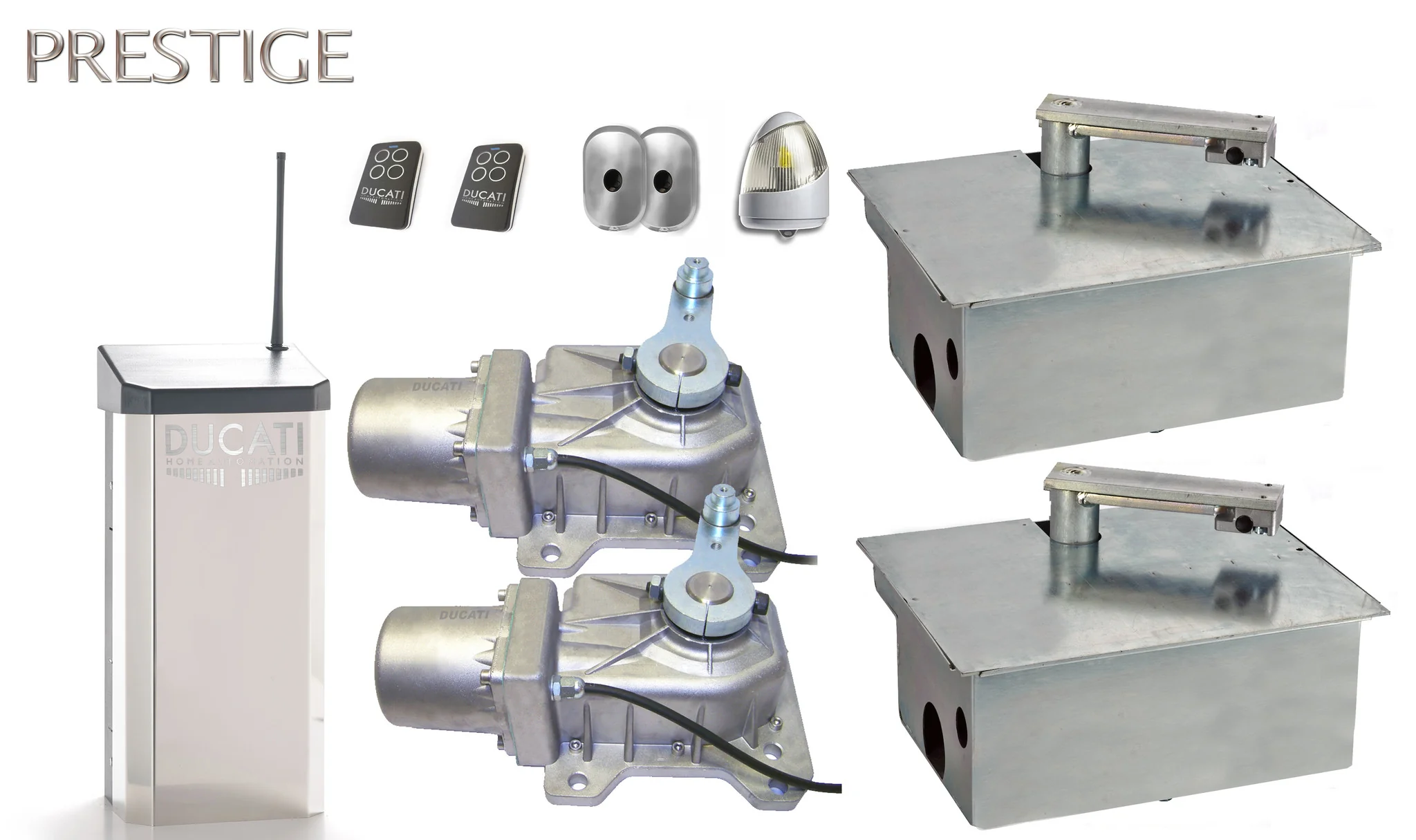

Kit Contents

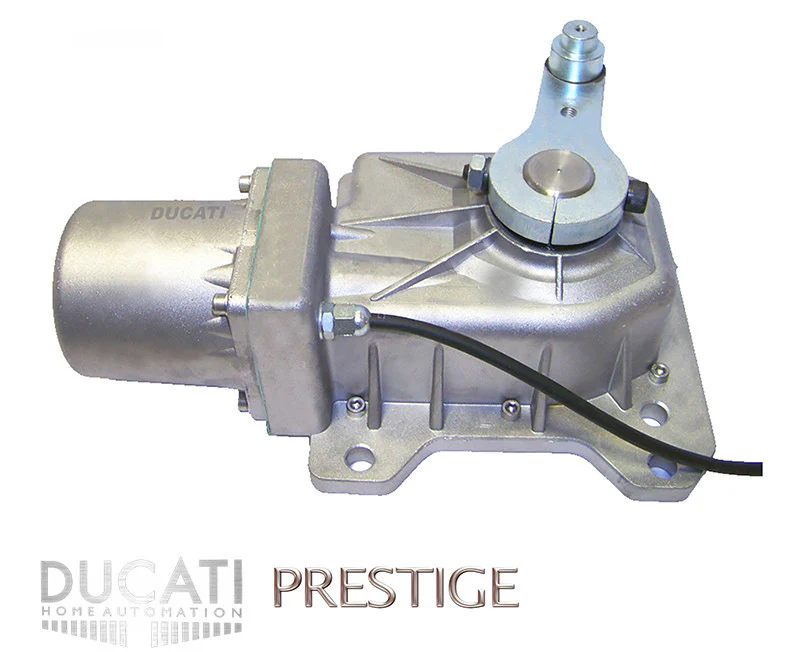

2x GEO MOT 24V gearmotor

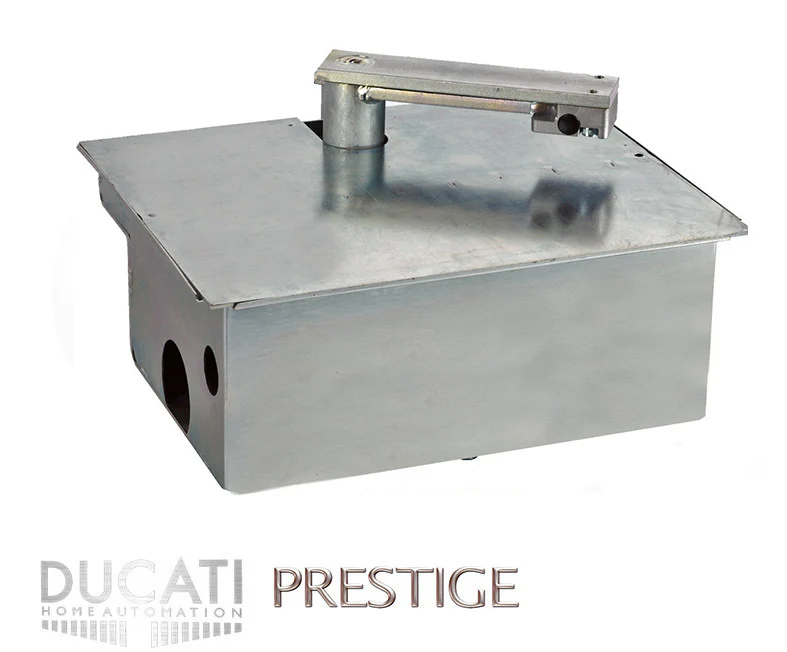

2x GEO BOX Galvanized foundation box
set of fixing brackets opening angle 90°

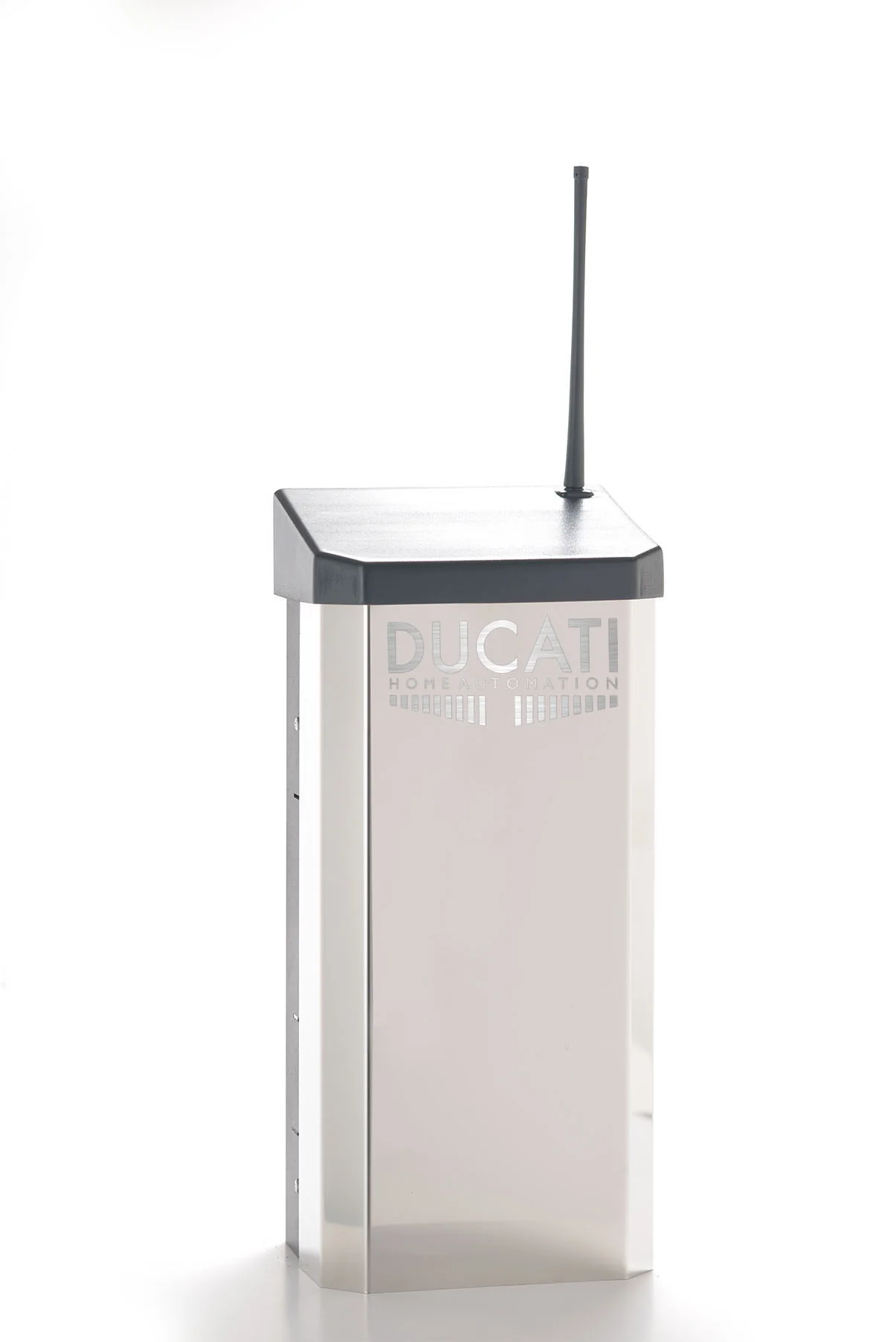

1x I-BOX 9048/24 large stainless steel control box with electronic board CTH48/24V, toroidal transformer, integrated radio receiver, antenna
2x 6203Roll - 2 buttons 433,92 Mhz rolling code radio transmitters
1x FLASH7500 - blinking light
1x pair of LASER 7120 ( stainlessteel photocells)
1x key for manual emergency release
1x instruction manual
1x warning sign

Features

Double speed with SOFT STOP
SOFT STOP adjustment: you can postpose/anticipate the slowdown phase
Obstacle detection sensitivity adjustment
Inverse movement by obstacle detection while closing
Control unit with integrated battery housing compartment
Integrated battery charger on board: just ready for connection to 2 x 12V emergency batteries in series connected. In case of power failure works autonomously up to 3 days
Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. NOTE: add 2 x 12V batteries in series connected + 24V min. 20W solar panel. No extra module needed
Low consumption technology: only 0,14W stand-by consumption! Protect the environment, reduces waste of energy and ensures long lasting autonomy with battery/solar panel use
Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open/ push to close)
Adjustable motor power/ obstacle detection sensivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
heavy duty opener: can work in continuous cycles without overheating
Adjustment of the time lag between the two doors
Pedestrian opening (1 partial opening the wing to allow the pedestrian crossing only) can be controlled by remote control or wired control.
Possibility of connecting an external timed courtesy light (example: garden light)
The gate is automatically locked in closed position ( irreversibile system).
Electro-lock is not needed, but recommended for wing longer than 2,8m each. Compatible with 24V electric-lock ( Booster required)
Made in Italy: All components are manufactured in the company to warranty high quality and reliability.
After sale service and assistance provided directly by manufacturer without intermediaries
Easy self-storing of the remotes controls by pushing one button
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
Manual release system by universal triangular key

Technical data

ELECROMECHANICAL UDERGROUND MOTOR GEO 548

Motor power supply	24V
dc motor	75W
max pushing & power	1200N
IP	67
working cycles limit	continuous use / no limits
working temperature	-20°C/+55°C
max wing length	2,5m/8ft each leaf
max.wing weight	500kg/1000lb each leaf
max. opening angle	90° / (up to 180° with additional accessory item: GIRO180 )
automatic wing lock	√
manual release system	√
Compatible with gate opening towards outside or inside the property	√

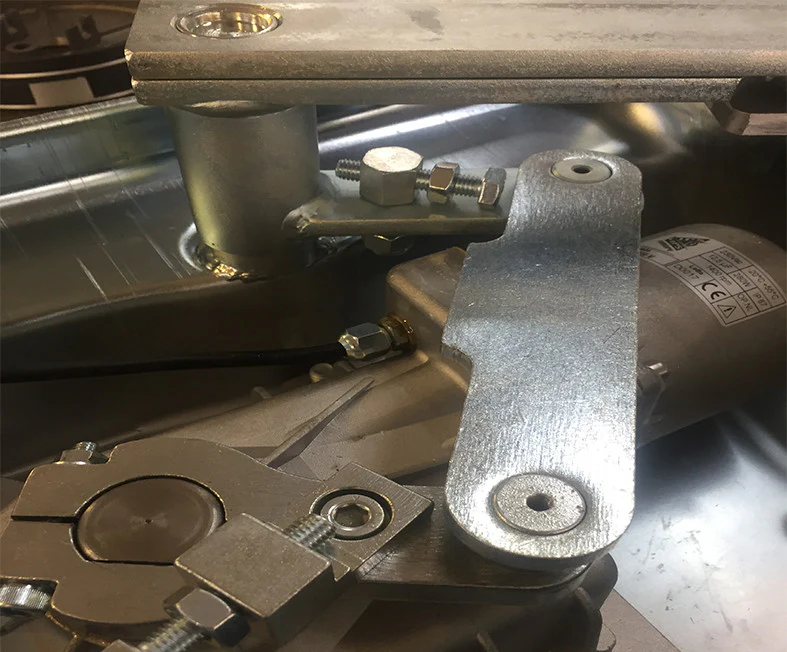

NOTE: the motor will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position.To avoid tmechanical limits to be fixed to the ground consider adding the GEO-FC integrated limits witch is an optional accessory to be adeded to this package. .

CTH48 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Main power supply (24V version)	Versatile, operates by 3 type of power supply A.C. By emergency battery 12V ( 2 x 12V batteries in series connected) By 12V 10W solar panel ( 24V min 20W solar panel)
toroidal transformer's Watts	105W output 0-12V-24V
protection fuse	√10AF
transformer protection fuse	0,8AT (1,2AT for 110V transformer)
use on single or double wing gate	√
output services (24V version)	24V
stand-by power consumption	14mA
radio receiver	2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening)
remote controls channels storage capacity	20 codes
radio transmission protocol	DUCATI rolling code
radio frequency	433,92MHz
remote control automatic learning	√
on board antenna	√
external antenna input	√
automatic closure working mode	√ with adjustable pause time up to 100 sec.
step by step working	√ one pulse to open; one pulse to close
motor power adjustment	√ by potentiometer
SOFT STOP	√ adjustable by potentiometer
Speed	2cm/sec
Obstacle detection safety system (DUCO SAFE)	√
ASR auto reversal system on obstacle detection	√
Wings time lag adjustment	√
In compliance with EU-CE norms	√
timerized courtesy light output	√
output for remote advising light of gate status	√ light on while gate is open, light off while gate is closed, fast blinking while closing, slow blinking while opening
flashing light output	√ max. 10W 24W blinks quickly while closing, blinks slowly while opening
electric lock output	√ additional booster needed
safety beam-photocells input (NC contact)	√ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120
full cycle START input (NO contact)	√
pedestrian cycle START input ( NO contact)	√
Emergency STOP button input (NC contact)	√

Manual

CLICK HERE to download the full instruction manual

ELECTRONIC BOARD wiring diagram: CTH48 to view installation manual

GEO

GEO 1048B

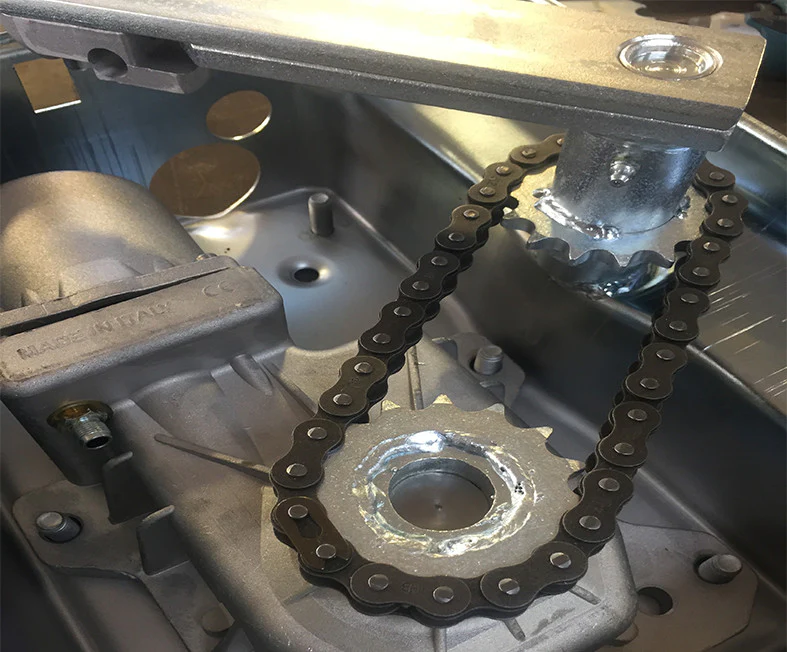

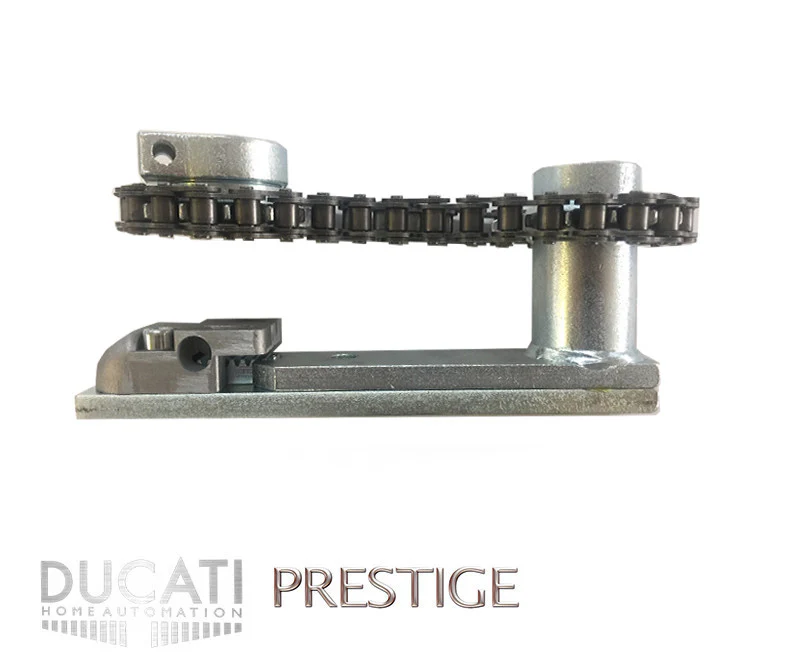

GEO ROTO 180°

GEO BOX

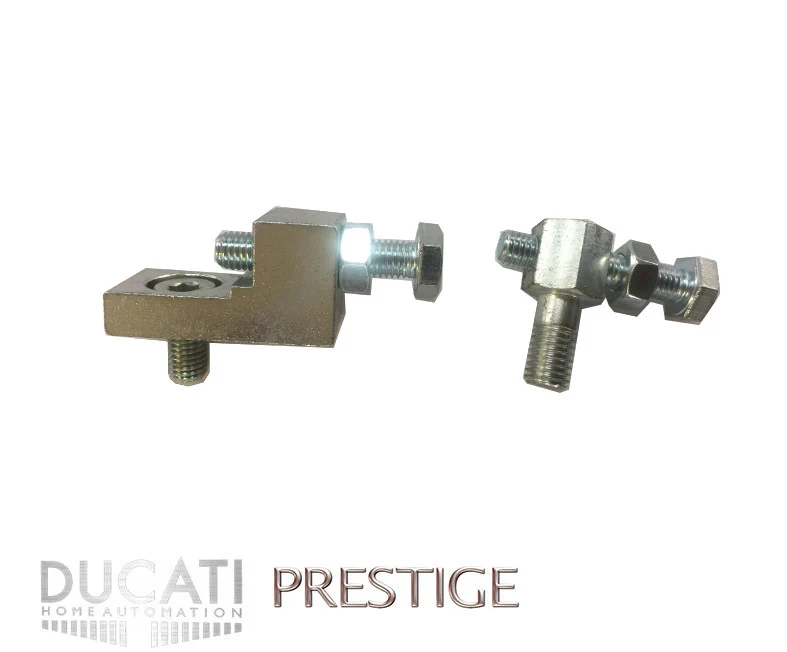

GEO FC
