SLIDE 2500 (kit)

Description

SLIDE 2500 powerful sliding gate opener

Ideal for heavy duty residential gates up to 2500kg

Kit Contents

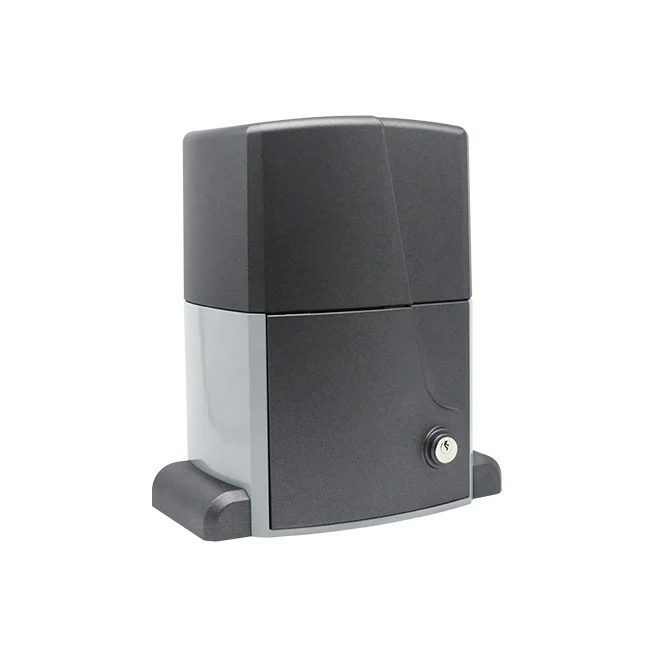

• 1x SLIDE 2500MC 24V DC motor case with toroidal transformer, electronic board & on board radio receiver (rolling coded)
• 1 pair of keys for manual unlocking
• 1 x SW5000 key switch

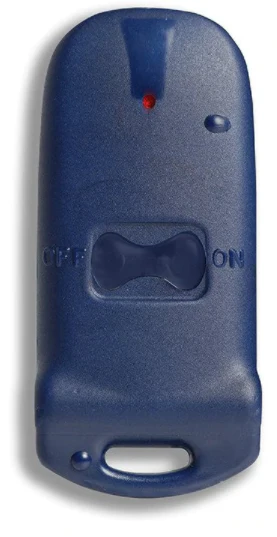

• 2 x 6203R x DUCATI rolling coded remote controls

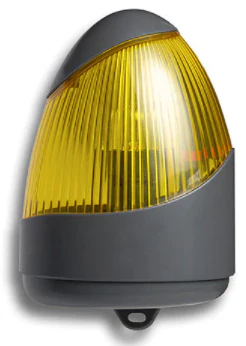

• 1 x FLASH 7500 blinker

Technical data

• Leaf weight 2500 Kg
• Structure in die-cast aluminum, powder painted
• Steel and cast gears obtained from solid
• Stator and mechanical parts in oil bath
• Available with and without control unit
• Control unit with built in radio receiver and aerial, control unit box with air-stop seal against moisture and insects
• Pre-wired and easy programming software
• High-performance electric motor
• Mechanical limit switch
• Release device with customised key
• Electronic torque control
• Very quiet operation
• Anti-squashing system and slowing down function (en 12453)
• Power supply 230Vac

POWER SUPPLY	230 Vac
LEAF WEIGHT	2500 KG
PINION	M4-Z16
ENGINE RPM	1400 RPM
AVERAGE ABSORPTION	2.4 A
ABSORBED POWER	650 W
CONDENSER	25 UF
OPERATOR WEIGHT	18 KG
NOISE LEVEL	< 30 DBA
ENVIRONMENTAL CONDITIONS	-20/+55° C
DEGREE OF PROTECTION	IP44
