SOLAR 2012

Description

20W 12V Solar Panel

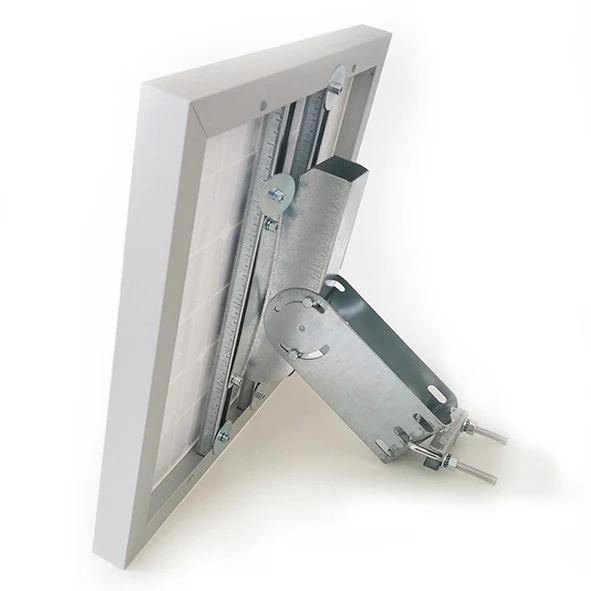

Supplied with robust  fixing bracket

photovoltaic module made with polycrystalline silicon cells.
Highly transparent prismatic tempered glass and  Tedlar sheet protects the cells, which are encapsulated between two sheets of EVA (Ethylene Vinyl Acetate). A robust anodized aluminum frame 25mm makes the modules extremely resistant.
The production process ensures the cells maximum protection even under the most demanding working conditions and the most difficult environmental conditions.

Electrical Data

Maximum power (Pmax) 20 Wp
Short Circuit Current (Isc) 1.34 A
Open Circuit Voltage (Voc) 22.25 V
MPP current (Imax) 1.12 A
MPP voltage (Vmax) 18,00 V
Isolation voltage 600 Vdc (UL)
PHYSICAL CHARACTERISTICS
Dimensions (mm) 510 x 290 x 25
Weight
2.40 Kg + fixing bracket.

Features

CONSTRUCTION FEATURES
Polycrystalline cell type
Number of cells 36
Front (Front) Tempered Glass
Rear (Rear) Tedlar multi-layer
encapsulation EVA
Anodized aluminum frame,
